Iris

A portal to a world without cables

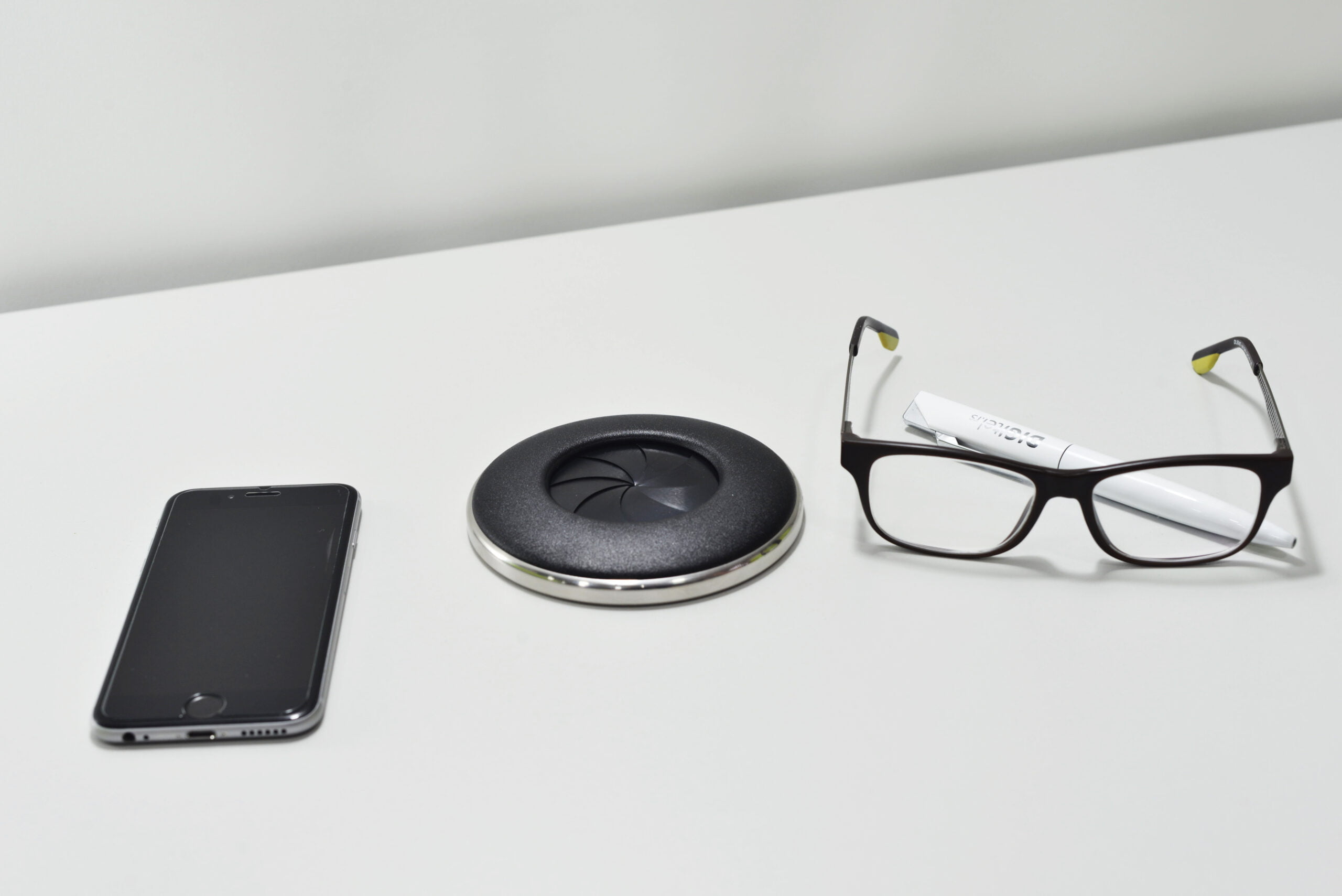

The Iris is a rosette or socket with a leaf shutter mechanism which, when the ring is turned, expands or contracts the central opening, adjusting it to a size that allows cables to pass through.

With its innovative design, Iris brings harmony to every space, conducting cables from the desktop to underneath whilst lending a unique note to the interior. If interior design is dear to your heart, or you just like that modern look, then you’ll love this cable-less world in which cables are hidden from view and not strewn loosely everywhere.

Iris does a simple job – conducting cables and providing access to sockets – in a supremely elegant way.

Available in black or white, with polished stainless steel or gold-coloured ring.

Specifications

VOLTAGE

100-250 V max

CURRENT

16 А max

FREQUENCY

50-60 Hz

number of modules

1

TEMPERATURE

0 – 40°C

RELATIVE HUMIDITY

0 – 95 %

(non-condensing)
PROTECTION

IP 42

power cable / connector

Cable HO5VV – F 3×1.5 mm
EPN 1104/EPN 1114 (Wieland m/f) – 400 mm

Modules

Our suggestions

USB 3.0

keystone F/F

RЈ45

CAT 6 keystone F/F

HDMI

keystone F/F

VGA

keystone F/F

AUDIO

keystone F/F

DISPLAY

keystone F/F

USB C

keystone F/F
on request

Connector types: B (USA, Canada, Mexico, Japan), C (Europe, South America and Asia), D (India), E (France, Belgium, Switzerland, Poland and Czech Republic), F (Europe and Russia – excluding UK and Ireland), G (UK, Ireland, Singapore), I (Australia, New Zealand, China and Argentina), J (Switzerland and Liechtenstein), K (Denmark and Greenland), L (Italy and Chile), M (South Africa), N (Brazil), Universal socket, Red socket – indicating backup power, Green socket – indicating power delivered via voltage stabiliser.

USB charger, 5V, 2.4A, 2 ports.

Documentation

Certificates

One ring to connect them all

Inside the unit, behind the cover, you can choose from the following:

  • a channel for passing monitor and other device cables through the desk,
  • a cable tray in which cables with male connectors are secured: UTP for Internet, HDMI for a TV, USB for desktop connection, VGA for projector connection,
  • any two communications connectors (USB-A, USB-C, RJ45, HDMI, audio)
  • any charge port (A-A, A-C, C),
  • any power socket.
